Töginger Straße railway overpass, Mühldorf am Inn ABS 38 Munich - Mühldorf - Freilassing

Overall planning of the upgraded section between Mühldorf and Tüßling (total length 7 km), with a large number of constraints. The railway overpass over Töginger Straße was part of this overall measure.
The Altmühldorf - Tüßling section was widened to two tracks in order to increase capacity and raise the line speed to 160 km/h. The single-track section Altmühldorf - Tüßling is a central component of the upgraded line ABS 38 Munich - Mühldorf - Freilassing.

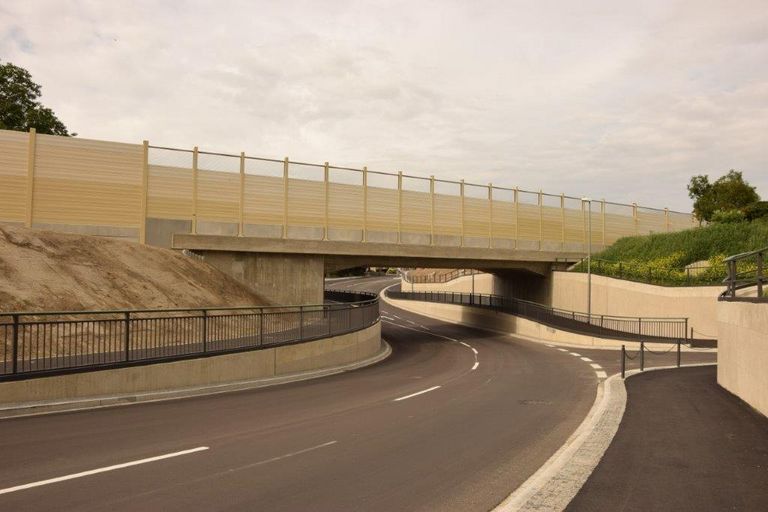

The single-track railway overpass over Töginger Straße had to be renewed due to the changes requested by the road authorities and the arrangement of the second track. Extensive changes to the road facilities were also necessary.
A total of six new retaining structures were required as a result of the changes in the road area.

Disciplines

  • Railways

Companies

GRE German Rail Engineering GmbH

Client

DB ProjektBau GmbH

Duration

From 2009 to 2016

Location

Bavaria, Germany

Project Activities

  • Project planning civil engineering works Lph 1-4 and 6-7
  • Project planning traffic facilities Lph 1-4 and 6-7
  • Structural engineering Lph 2-3 and 6
  • Coordination with Deutsche Bahn AG regarding railway operations during the construction period, preparation of a crossing agreement including a replacement calculation and various fictitious designs and coordination of the measures for the relocation of divisions

Technical parameters:

  • Spans: 19.40 m
  • Clear width: 16.44 m
  • Clear height: ≥ 4.70 m
  • Total length: 22.80 m
  • Total width: 11.41 m
