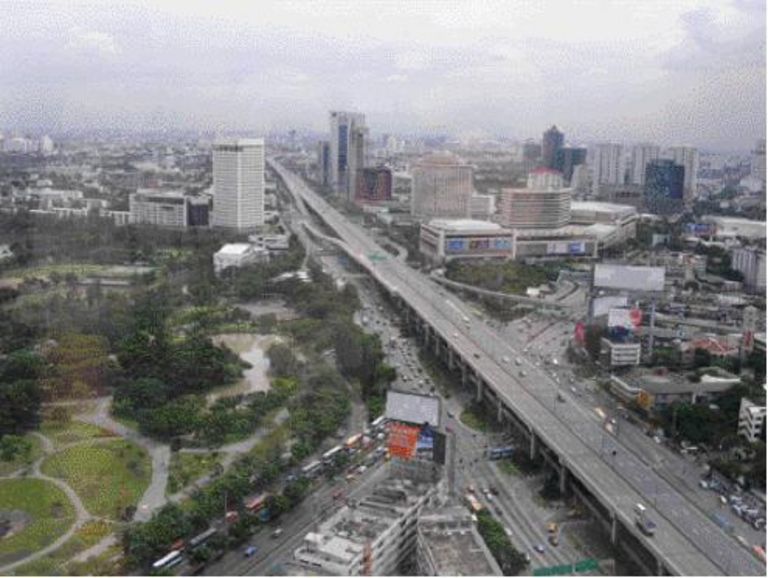

Din Daeng-Don Muang Tollway – Northern Extension 1
Traffic on the existing expressway at ground level (volume approx. 180 000 vehicles per day) was not to be Interrupted; it was therefore necessary to effect special traffic management measures, adopt special construction methods and, above all, carry out construction work at night.
Standard viaduct cross-section: a concrete deck slab on top of 10 T-girders placed on cross-beams which are supported by 2 arms of Y-shaped piers-both an aesthetic and an economical solution.
A prefabrication yard was set up near the construction site; because of the restricted working area there, off-site prefabrication was essential:
- surface area: 6 500 m²
- gantries: 1 X 140 t/2 X 70 t
- workshops
- site laboratory
- main offices
- 2 concrete batching plants (each with capacity of 60 m³ / hour)
Disciplines
- Roads
- Transportation
Companies
Dorsch Consult asia Co., Ltd.
Client
Don Muang Tollway Co., Ltd.
Duration
From 1997 to 1998
Location
Bangkok, Thailand
Project Activities
- Basic design
- Product handling facilities
- Product specifications
- Piping and mechanical equipment design parameters
- Process flow balances and material balances
- Utility and safety requirements
- Plot plans and lay-out drawings
- Jetty design data
- Preparation of bid documents comprising
- Contractual / legal part with instruction to bidders, scope of
- work and conditions of contract Technical part with standard and engineering specifications covering all types of deliveries, installations and constructions
- Contractor prequalification
- procedure
- Cost estimate
- Bid evaluation and recommendation for contract award
